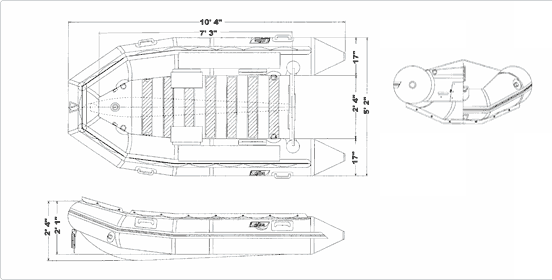

FRB-104
Rapid Deployment Rescue Series.

FRB boats are designed to enable fire departments and emergency rescue units to keep an easily stored boat available that can be ready in minutes to respond to a water emergency. Remarkably light weight, they are easy to carry, yet can hold up to 1230 and 1500 pounds respectively. They inflate quickly using compressed air bottles or the foot pump included as standard equipment.




FRB Standard Features include:


Hypalon/Neoprene fabric; aluminum roll-up floor with nonskid panels, fiberglass-encased transom with protective motor clamp plate; five carry handles; two paddles with tie downs; two removable storage bags; full length splash guard with life lines; abrasion wear patches; five tie-down/davit rings; full-length rubbing strake; and maintenance kit.


( FRB-104 );  Two pressure relief valves.
Stowed Dimensions: 4'1" x 2'1" x 1'3" (125 x 63 x 39 cm.)

( FRB-124 );  Four pressure relief values.
4'5" x 2'6" x 2'0" (135 x 75 x 60 cm.)

  FRB-104FRB-124
Color RedRed
Length 10'412'4
Inside Length
Beam
Inside Beam 2'42'6
Tube Diameter 1717
Weight 108 lbs. (49 kg.)154 lbs. (70 kg.)
Load Capacity 1,230 lbs. (560 kg.)1,500 lbs. (680 kg.)
Person Capacity 45
Recommended H.P. 9.9 (4-15)15 (4-25)
Maximum H.P. 15 Standard25 Standard
Air Chambers 2 & Keel4 & Keel
