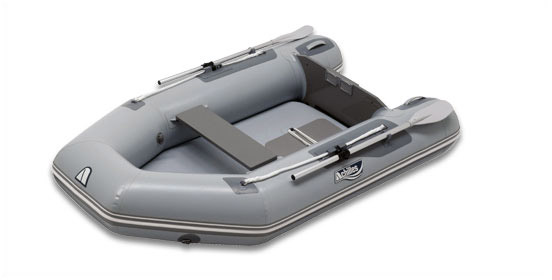

LSI-230
Our LSI boats were the first inflatable tenders made with Achilles CSM - reinforced high pressure air floors.

The world’s best high-pressure air floor tenders are better than ever thanks to their Performax tube design. Our Performax tube design provides more buoyancy and a greater load capacity essential for today’s heavier 4-stroke motors. This tube design also results in a longer waterline enabling our LSI series dinghies to plane even quicker and stay on plane at slower speeds.


Our LSI series tenders also have Achilles CSM Drop Stitch High Pressure Floors. When you consider the abuse floors take from scrapes, the sun, salt-water and even oil and gasoline, it makes sense to have the toughest material available to protect them-and that is Achilles CSM. So our remarkable AirFirm™ floors are not only incredibly lightweight and rigid, they are also the most durable you will find. Thousands of polyester threads make our air floors super firm.


The additional support of an air keel increases floor rigidity and along with a fiberglass-encased transom** enhances overall performance. With large tube diameters, LSI tenders carry heavy loads despite their light weight. There are six different LSI model sizes to choose from. No other manufacturer’s air floor tenders offer more convenience, more quality or more choices.


*LSI-230 has no air keel and a wood transom.




LSI Standard Features include:


Achilles CSM fabric; air keel & fiberglass encased transom (all models except LSI-230); CSM drop stitch AirFirmTM Floors; full length tear drop rubbing strake; bow carry handle and internal bow lifting D-ring; fold down locking oar system; two-piece break down aluminum oars & oar holders; towing bridle D-rings; life lines; removable wood rowing seat; protective motor clamp plate; self-bailer valve; large high pressure foot pump with pressure gauge; carry bag; rear carry handles; maintenance kit; and floor protection pad for gas tank.


  LSI-230LSI-260LSI-290LSI-310LSI-335LSI-365
Color Lt. GrayWhite or Lt. GrayWhite or Lt. GrayWhite or Lt. GrayLt. Gray or Red/Lt. GrayRed/Lt. Gray
Length 7'7" (230 cm)8'6" (260 cm)9'6" (290 cm)10'2" (310 cm)11'0" (335 cm)12'2" (365 cm)
Inside Length 5'1" (155 cm)6'1" (185 cm)6'9" (205 cm)7'3" (220 cm)7'5" (226 cm)8'10" (268 cm)
Beam 4'9" (144 cm)4'9" (144 cm)5'2" (158 cm)5'2" (158 cm)5'6" (168 cm)5'6" (168 cm)
Inside Beam 2'2" (66 cm)2'2" (66 cm)2'4" (72 cm)2'4" (72 cm)2'7" (78 cm)2'7" (78 cm)
Tube Diameter 15.5" (39 cm)15.5" (39 cm)17" (43 cm)17" (43 cm)18" (45 cm)18" (45 cm)
Weight 52 lbs. (23.5 kg)66 lbs. (30 kg)74 lbs. (33.5 kg)79 lbs. (36 kg)91 lbs. (41.5 kg)115 lbs. (52 kg)
Load Capacity 820 lbs. (370 kg)950 lbs. (430 kg)1230 lbs. (560 kg)1320 lbs. (600 kg)1630 lbs. (740 kg)1700 lbs. (770 kg)
Person Capacity 244456
Recommended H.P. 4 (2-4) standard4 (2-6) standard6 (4-8) standard8 (4-10) standard10 (6-15) standard15 (6-25) standard
Maximum H.P. 4 standard6 standard8 standard10 standard15 standard25 standard
Air Chambers 2 & floor2 & keel & floor2 & keel & floor3 & keel & floor3 & keel & floor4 & keel & floor
